£1,665.00
Processing Powerful RISC CPU for advanced strategy execution Display 5'' WVGA ultra bright for daylight to dark with intelligent auto dimming Inputs 6 user configurable general purpose analogue sensor inputs...
Processing Powerful RISC CPU for advanced strategy execution Display 5'' WVGA ultra bright for daylight to dark with intelligent auto dimming Inputs 6 user configurable general purpose analogue sensor inputs...

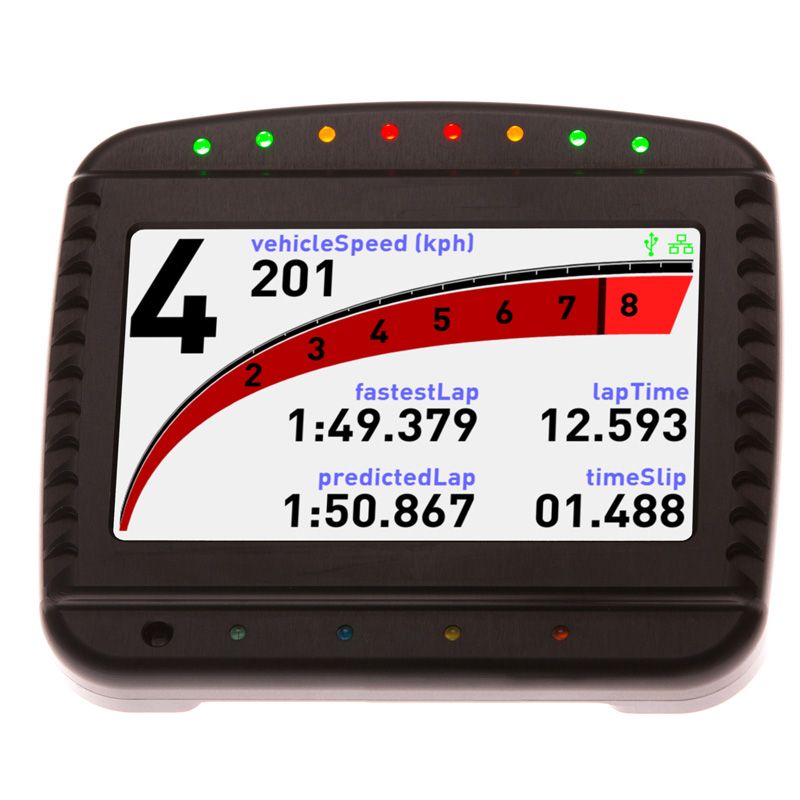

Sku: LR-D5-Dash-Club
Vendor: Life Racing

Processing

  • Powerful RISC CPU for advanced strategy execution

Display

  • 5'' WVGA ultra bright for daylight to dark with intelligent auto dimming

Inputs

  • 6 user configurable general purpose analogue sensor inputs
  • 4 user configurable switch inputs

Interfaces

  • 2 Gigabit full duplex Ethernet for configuration and data download
  • 2 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems
  • USB 2.0 for bulk data storage on USB stick (FAT and FAT32 USB formats supported only)

Memory

  • Unlimited USB logging memory
  • Ultra-fast data download via Ethernet
  • Time/Date stamped data via real-time clock

Power Supply

  • 6V to 80V input voltage range with reverse polarity protection
  • 1 regulated 5V sensor supply output with individual short circuit protection
  • 1 protected sensor ground connection

Physical

  • 50Way D-type connector
  • CNC machined, sealed IP67, black anodised aluminium case
  • Class leading slim profile for flat panel mounting
  • Maximum dimensions including the connectors are 140 x 123 x 31 mm
  • Total mass is ~395 grams

Available Upgrade Features

  • Pro Spec (USB Logging)
