£3,654.00
Features Schematic based calibration including logic simulation tool I/O slaving to an LR ECU Low power state woken on physical input, CAN activity, or specific CAN frame Outputs 48 main...

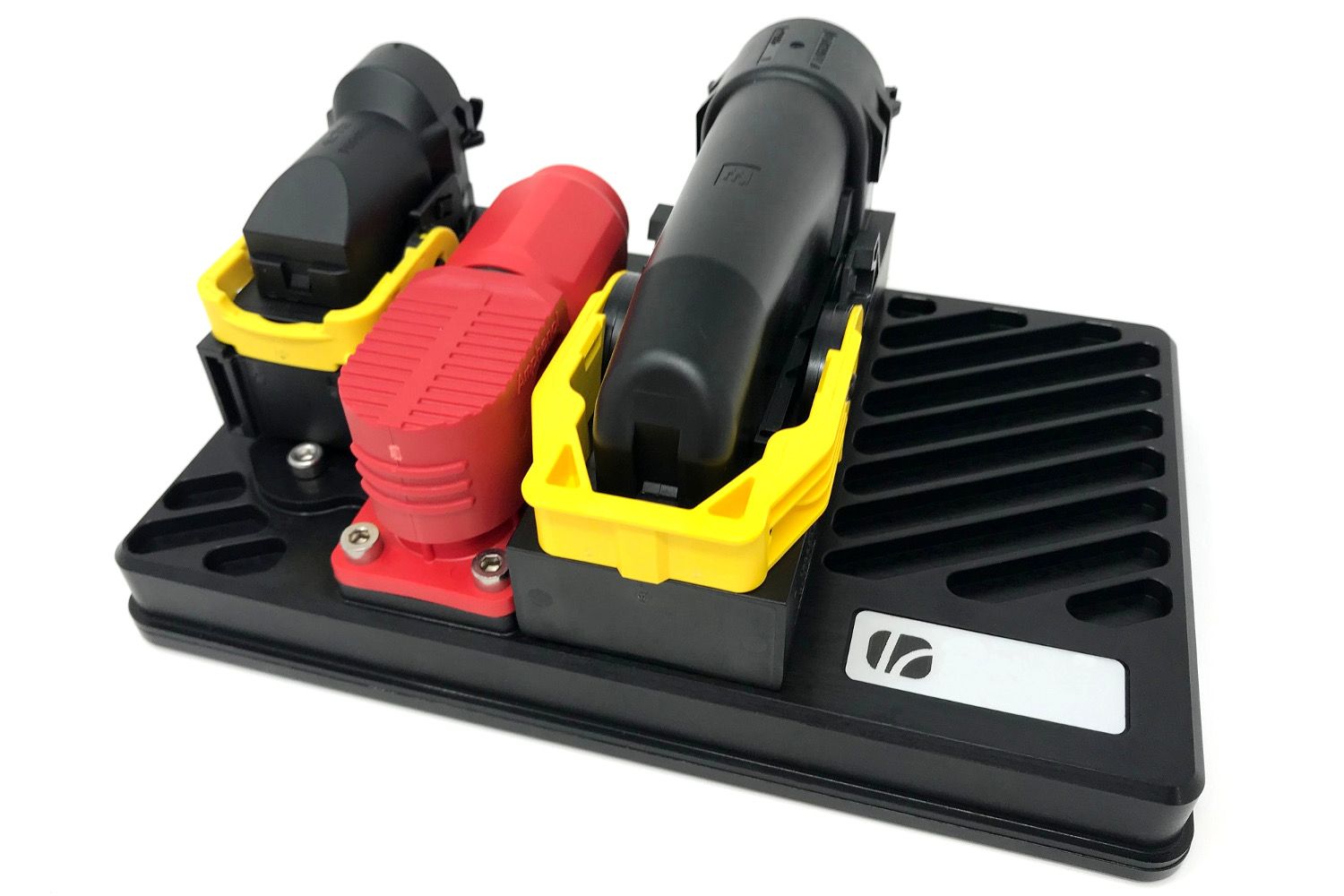

Sku: LR-PDUx4
Vendor: Life Racing

Features

  • Schematic based calibration including logic simulation tool
  • I/O slaving to an LR ECU
  • Low power state woken on physical input, CAN activity, or specific CAN frame

Outputs

  • 48 main Power Outputs
    • 10 multifunction high side, low side, PWM, H-Bridge outputs
    • (40A continuous, soft-start inrush limiting 40A, hard-start inrush 60A)
    • 10 High Side outputs (40A continuous, hard-start inrush 60A)
    • 28 High Side outputs (15A continuous, hard-start inrush 17.5A)
    • Output teaming to support very high current devices
  • 4 Additional Low Side Outputs (PWM capable)
  • All outputs short circuit and thermally protected with multi-stage in-rush control
  • Combined diagnostic output with reset input
  • Up to 128 soft outputs via CAN

Inputs

  • 16 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
    • 8x frequency measurement inputs (4 optionally bi-polar)
    • software selectable 3k ohm pull-up resistors
    • 4x inputs capable of programmable “wake up” functionality
  • Dedicated wake pin
  • Up to 128 soft inputs via CAN with configurable validation and debounce time

Interfaces

  • 2x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
  • 3x CAN 2.0B
  • RS232C serial interface
  • LIN Bus

Power Supply

  • 6.5V to 20V input voltage (12V option)
  • 6.5V to 24V input voltage (24V option)
  • Dedicated 12V logic power input
  • Regulated 5V sensor supply output with short circuit protection

Physical

  • 2 Leavyseal connectors with a total of 113 pins
  • Amphenol SurLok Power Stud
  • Machined Aluminium enclosure
  • 210x130x57mm (including connectors)
  • 850grams
  • Operating Temperature up to +85C
