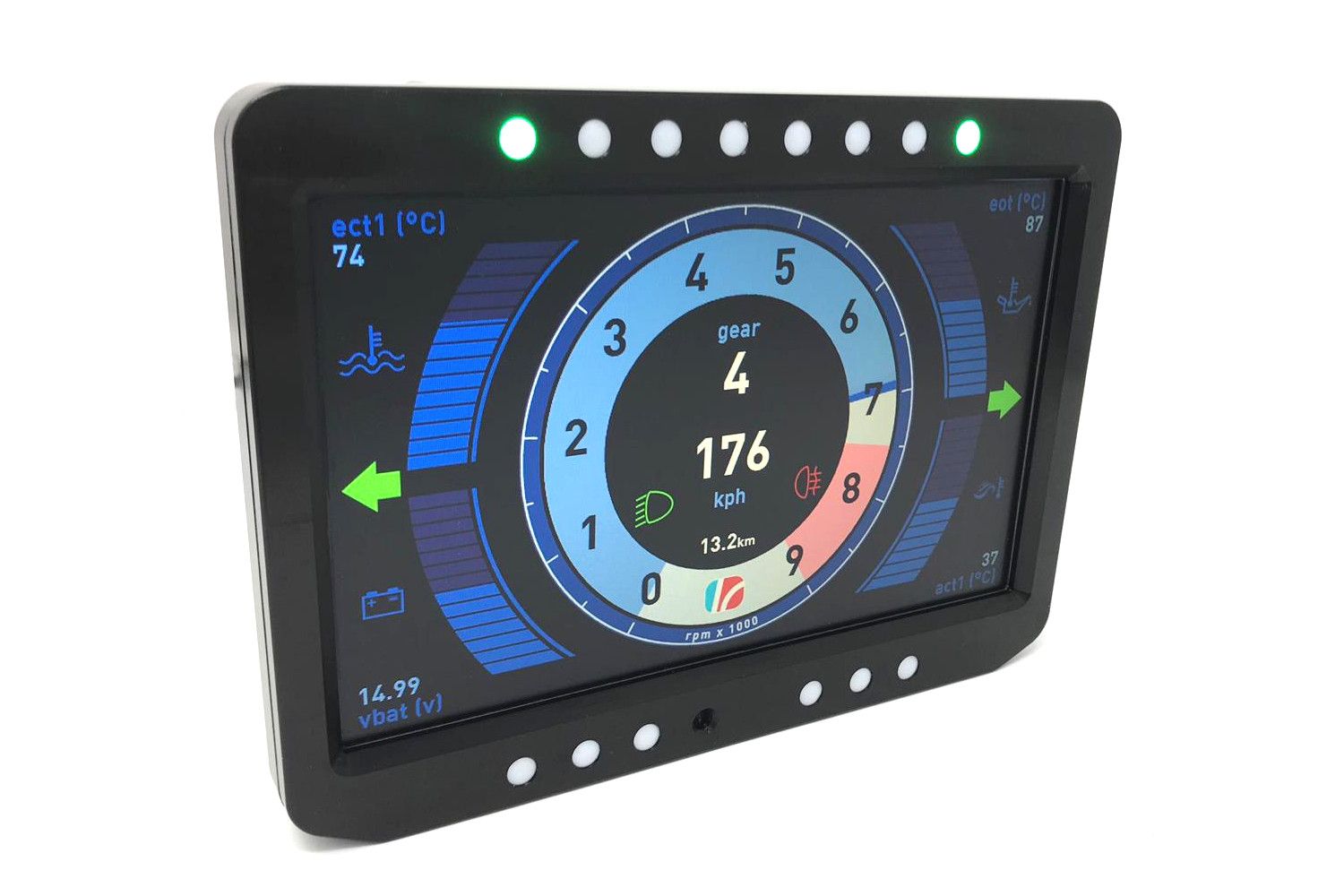

Life Racing D8 Dash Club

Processing

• Powerful RISC CPU for advanced strategy and user-definable maths channel execution

Display

• High resolution large 8" WVGA ultra bright non-reflective screen for easy viewing even in direct sunlight with intelligent auto dimming for low light or night time operation

Inputs

• 10 user configurable general purpose analogue sensor inputs
• 6 user configurable switch inputs

Outputs

• 4 user configurable low-side outputs (2 configurable as PWM)

Interfaces

• 2 Gigabit full duplex Ethernet for configuration and data download
• Two CAN 2.0B interfaces for communication with other controllers or logging systems
• RS232 serial interface for communication with other controllers or logging systems
• USB 2.0 for bulk data storage on USB stick (FAT and FAT32 USB formats supported only)

Memory

• Unlimited USB logging memory
• Ultrafast download via Ethernet
• Time/Date stamped data via real-time clock

Power Supply

• 6V to 80V input voltage range with reverse polarity protection
• 1 regulated 5V sensor supply output with individual short circuit protection
• 1 protected sensor ground connection

Physical

• 55Way Autosport connector
• CNC machined, sealed IP67, black anodized aluminium case
• Class-leading slim profile for flat panel mounting
