£3,342.00
Processing Powerful RISC CPU for advanced strategy execution Custom synchronous FPGA processor for engine position tracking up to 25,000rpm Outputs 28 user configurable general purpose pulse width modulated power outputs,...

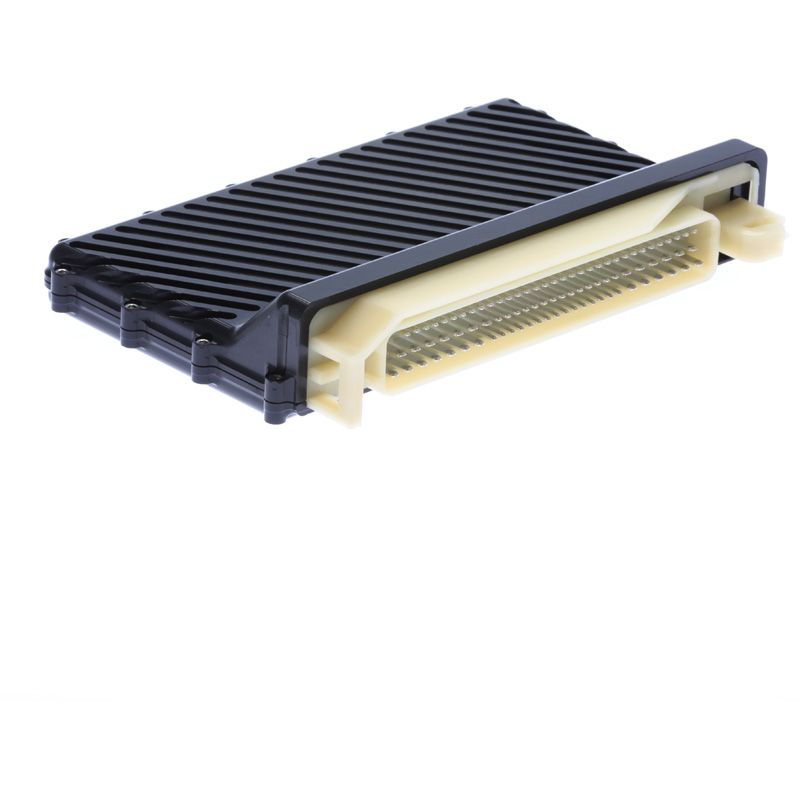

Sku: LR-F88
Vendor: Life Racing

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Outputs

  • 28 user configurable general purpose pulse width modulated power outputs, including:
  • 8 ignition Coil outputs IGBT or TTL (Software configurable)
  • 16 general PWM/Fuel Injector outputs
  • 2 full bridges also configurable as 4 half bridges or 4 PWMs

Inputs

  • 24 user configurable general purpose analogue sensor inputs, including 16 bipolar, inductive or hall effect speed / engine position inputs
  • 6 dedicated inputs, including:
  • 2 acoustic knock sensor inputs
  • 2 wideband (NTK) lambda sensor interfaces
  • 2 K-type thermocouple sensor interfaces

Interfaces

  • 100 MHz full duplex Ethernet for calibration, configuration and data download
  • 2 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems

Memory

  • 128MB battery backed internal logging memory
  • Ultra Fast data download via Ethernet
  • Time/Date stamped data via real time clock

Power Supply

  • 6 to 32V input voltage range with reverse polarity protection
  • 2 regulated 5V sensor supply output with individual short circuit protection
  • Software configurable (5 to 12V) sensor supply output (eg for 10V load cells)
  • 5 separately protected sensor and communication ground inputs

Physical

  • 88 Way Bosch / AMP sealed connector
  • CNC machined, ‘O’ ring sealed, anodised aluminium case
  • Maximum dimensions including the connectors are 178 x 122 x 36 mm
  • Operating temperature up to +85°C
  • Sealed to IP65 (when mated)
  • Total mass is 485 grams

Available Upgrade Features

  • Adaptive Knock Control
  • Diesel Control
  • Direct Injection Pump Control
  • Direct Motor Control
  • Gearbox Control
  • Traction Control
  • Custom Security

Build Time Choice (BTC) Options

  • 12 Ignition Outputs
  • CAN3 Replaces Second Lambda
