£5,058.00
Outputs 50 user configurable general purpose pulse width modulated power outputs, including: 12 ignition coil outputs IGBT or TTL (Software configurable) 24 fuel injector outputs 8 general PWM outputs or...

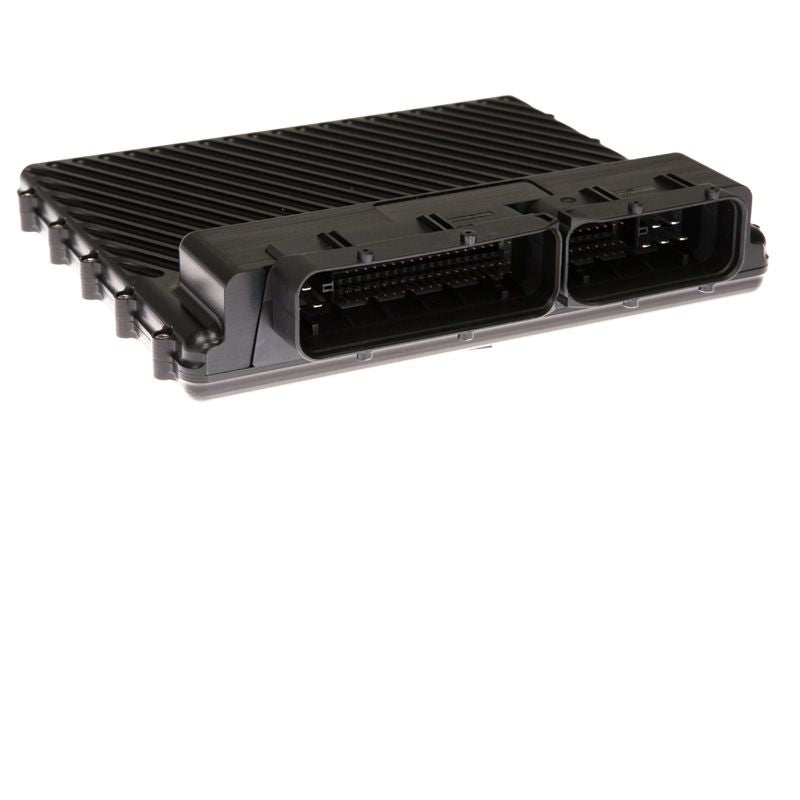

Sku: LR-F90RX
Vendor: Life Racing

Outputs

  • 50 user configurable general purpose pulse width modulated power outputs, including:
  • 12 ignition coil outputs IGBT or TTL (Software configurable)
  • 24 fuel injector outputs
  • 8 general PWM outputs or 8 analogue inputs (Software configurable)*
  • 3 full bridges† also configurable as 6 half bridges or 6 PWMs

Processing

  • Powerful RISC CPU for advanced strategy execution
  • Custom synchronous FPGA processor for engine position tracking up to 25,000rpm

Inputs

  • 36 general purpose analogue sensor inputs, including up to 16 bipolar, inductive or hall effect speed / engine position inputs
  • 8 dedicated inputs, including:
  • 4 acoustic knock sensor inputs
  • 2 wideband (NTK) lambda sensor interfaces
  • 2 K-type thermocouple sensor interfaces

Interfaces

  • 100 MHz full duplex Ethernet for calibration, configuration and data download
  • 3 CAN 2.0B interfaces for communication with other controllers or logging systems
  • RS232 serial interface for communication with other controllers or logging systems

Memory

  • 128MB battery backed internal logging memory
  • Ultra fast data download via Ethernet
  • Time/Date stamped data via real time clock

Power Supply

  • 6V to 32V input voltage range with reverse polarity protection
  • 2 regulated 5V sensor supply output with individual short circuit protection
  • Software configurable (5V to 12V) sensor supply output (eg for 10V load cells)
  • Unregulated sensor supply output which tracks the ECU supply voltage with nominal 17V clamp
  • 5 Separately protected sensor and communication ground inputs

Physical

  • Twin split automotive connector totalling 121 pins
  • CNC machined, ‘O’ ring sealed, anodised aluminium case
  • Maximum dimensions including the connectors are 179 x 161 x 41 mm
  • Operating temperature up to +85°C
  • Sealed to IP65 (when mated)
  • Total mass is ~670 grams

Available Upgrade Features

  • Adaptive Knock Control
  • Diesel Control
  • Direct Injection Pump Control
  • Direct Motor Control
  • Gearbox Control
  • Traction Control
  • Custom Security
