£3,648.00

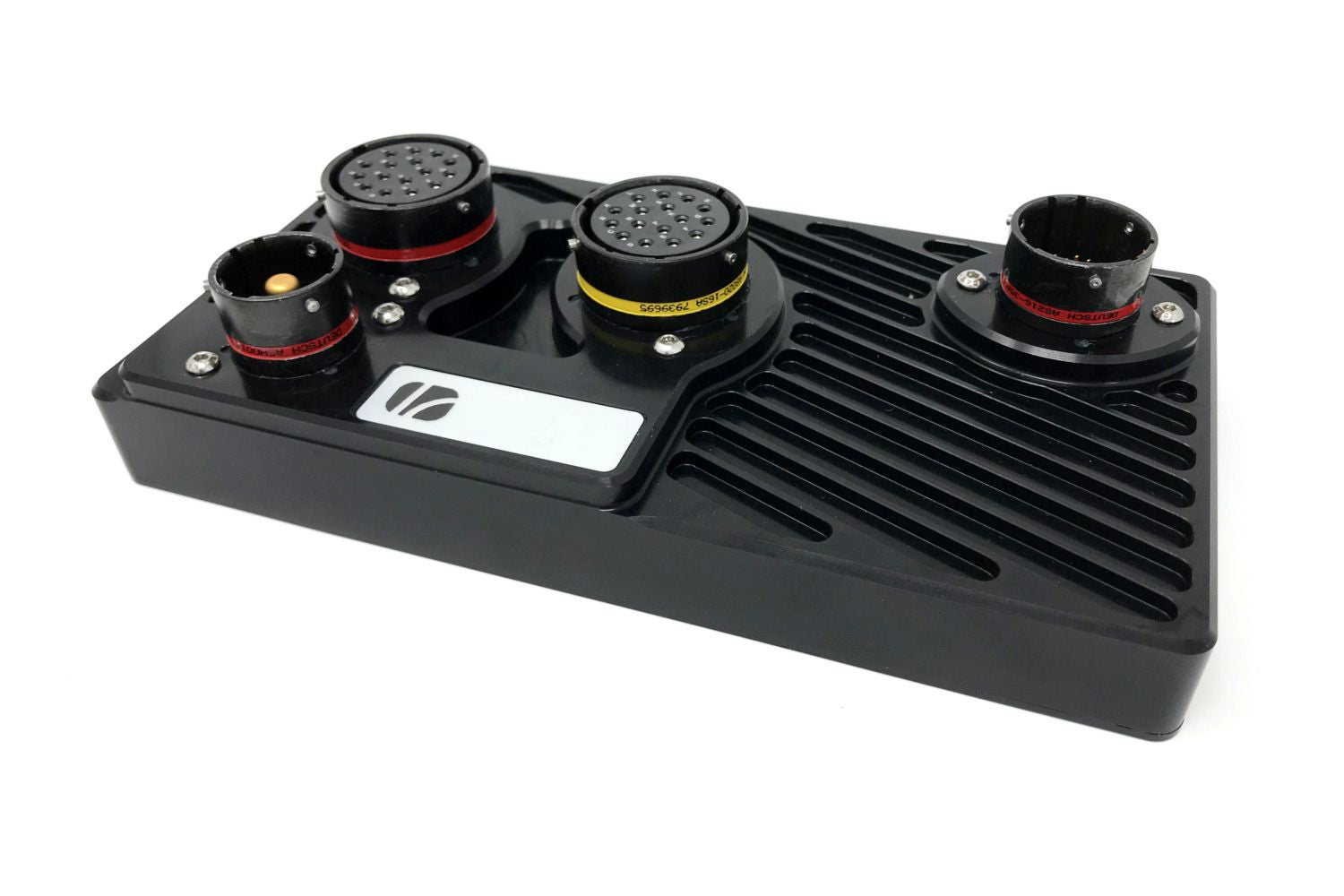

General Microprocessor controlled power switching, monitoring and fusing unit Fully configurable input to output schematic mapping with latch, flash, and logic functions Fully configurable inrush current, high current and low...
Sku: LR-PDU34A
Vendor: Life Racing

General

  • Microprocessor controlled power switching, monitoring and fusing unit
  • Fully configurable input to output schematic mapping with latch, flash, and logic functions
  • Fully configurable inrush current, high current and low current trips
  • Control and diagnostic communication with ECUs, datalogging or telemetry equipment
  • Current monitoring on all outputs available on datastream or pc

Outputs

  • 34 switched power outputs with individual trip configuration, fusing and alarms
    • 10 multifunction high side, low side, high side PWM (fixed 20kHz) outputs
    • (20A continuous, soft-start inrush limiting 50A, hard-start inrush 50A)
    • 20 high side outputs (20A continuous, hard-start inrush 50A)
    • 4 high side outputs (10A continuous, hard-start inrush 50A)
  • 128 soft outputs via CAN

Inputs

  • 16 voltage level inputs
  • 128 soft inputs via CAN with configurable validation time and debounce time

Fault Pin

  • Single pin fault indicator lamp output and reset input

Interfaces

  • Two port ethernet for PC configuration and monitoring connection
  • Two CAN 2.0B interfaces (CAN 1 for other controller communication and CAN 2 dedicated for LR proprietary use only)
  • RS232 serial interface for communication with other controllers or logging systems. (Custom projects only)

Power Supply

  • 6V to 20V input voltage (12V) (Deutsch Autosport connector limited to 200A)

Physical

  • Deutsch AS connectors
  • CNC machined, ‘O’ ring sealed, anodised aluminium case
  • Operating Temperature -25 to +85C
