£1,557.00
Features Schematic based calibration including logic simulation and live monitoring I/O slaving to an LR ECU Low power state woken on physical input, CAN activity, or specific CAN frame Outputs...
Features Schematic based calibration including logic simulation and live monitoring I/O slaving to an LR ECU Low power state woken on physical input, CAN activity, or specific CAN frame Outputs...

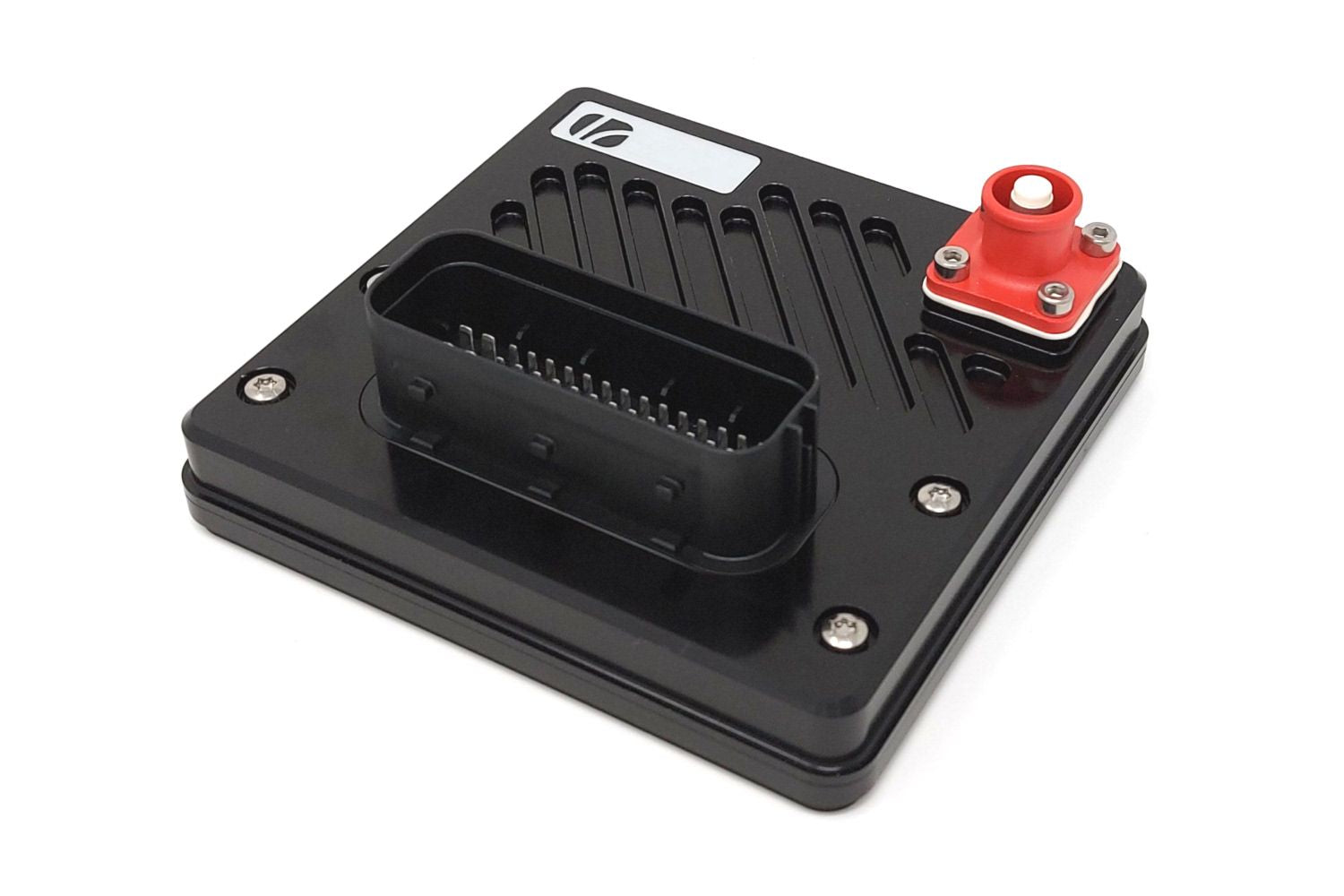

Sku: LR-PDUx2
Vendor: Life Racing

Features

  • Schematic based calibration including logic simulation and live monitoring
  • I/O slaving to an LR ECU
  • Low power state woken on physical input, CAN activity, or specific CAN frame

Outputs

  • 16 main Power Outputs
    • 4 multifunction high side, low side, PWM, H-Bridge outputs (35A continuous, soft-start inrush limiting 35A)
    • 2 High Side outputs (35A continuous, hard-start inrush 60A)
    • 10 High Side outputs (12A continuous, hard-start inrush 17.5A)
    • Output teaming to support very high current devices
  • 2 Additional Low Side signal PWM Outputs
  • All outputs short circuit and thermally protected with multi-stage in-rush control
  • Combined diagnostic output with reset input
  • Up to 128 soft outputs via CAN

Inputs

  • 12 physical switch inputs or, when slaved, general purpose analogue sensor inputs including:
    • 4x frequency measurement inputs
    • software selectable 3k ohm pull-up resistors
    • 4x inputs capable of programmable “wake up” functionality
  • Dedicated wake pin
  • Up to 128 soft inputs via CAN with configurable validation and debounce time

Interfaces

  • 2x 100Mbit/s full duplex Ethernet (can be used as Ethernet switch)
  • 3x CAN 2.0B
  • RS232C serial interface
  • LIN Bus

Power Supply

  • 6V to 20V input voltage (12V option)
  • 6V-30V input voltage (24V option)
  • Dedicated logic power input
  • Regulated 5V sensor supply output with short circuit protection

Physical

  • 1 Leavyseal connector with a total of 62 pins
  • Amphenol SurLok Power Stud
  • Machined Aluminium enclosure
  • 135x125x50mm (including connectors)
  • 750grams
  • Operating Temperature up to +85C
